SPECIFICATIONS

Name: OBO Hands TCP/IP Access Control Panel Board with DC12V 5A Metal Power Supply Converter Box for 1/2/4 Door Office Entry System
Brand: ZALEEN
SKU: 14:200003699#1 with Converter
Price: 378.67 USD
Availability: InStock

Brand Name: OBO HANDS

Origin: Mainland China

Model Number: Access Control Board

Certification: CE

Smart home platform: none

Direction: None

Security Mode: Fail Safe

Communication: TCP/IP

Software Supportable Database: Access & SQL

Door Controlled: 1 door / 2 doors / 4 doors

Quantity of Readers: 2 units / 4 units

Power Supply Input: DC12V

Power Consumption of Circuit Board: Less than 100mA

Input Format of Reader: Wiegand 26-bit

Quantity of Users: 20,000 users

Quantity of Event Buffers (offline): 100,000 event buffers

Material of the Board: PCB plastic

Dimension: 160(W)x106(H)mm

1. TCP/IP Network Access Control Board Panel

3 model for choicesL01 for single door
L02 for double doors
L04 for four doors

1.1 Product Specifications:

Communication: TCP/IP
Software Supportable Database: Access & SQL
Number of door controls: 1 door/2 doors/4 doors (Get in and out door by swiping card, or get in by swiping card and get out door by button)
Number of readers: 2/ 4 readers
Door opening time extension: Setting: 1 ~ 600 seconds (adjustable)
Number of controllers: Unlimited (Remark: N denotes qty of computer serial port or qty of 485hub port, support 256pcs ports)
Number of users: 20,000 users
Number of event buffers (offline): 100,000 event buffers
Power input: DC 12V, 4 ~ 7A
Power consumption of the PCB: Less than 100mA
Software supportable database: Access & SQL
Input format of the reader: Wiegand 26 bit (All card readers with compatible protocol like HID, EM, M1 etc.)
Max distance from reader to controller: 100m (default distance 80m)
Alarm for long time door open, illegal entry, intimidate
Fire and alarm linkage: If there is no connection to the expansion card, only has software interface alarm and control the computer speaker.
When connected with expansion car
Remote control module: Yes
Anti-submarine back and anti-tail: Yes
Multi-Card Open Door: Yes open long time at specific time: Yes
Electronic Card: Yes
Emergency Lock: Yes
First card unlock: Yes
Unlock based on internal and external validation: Yes

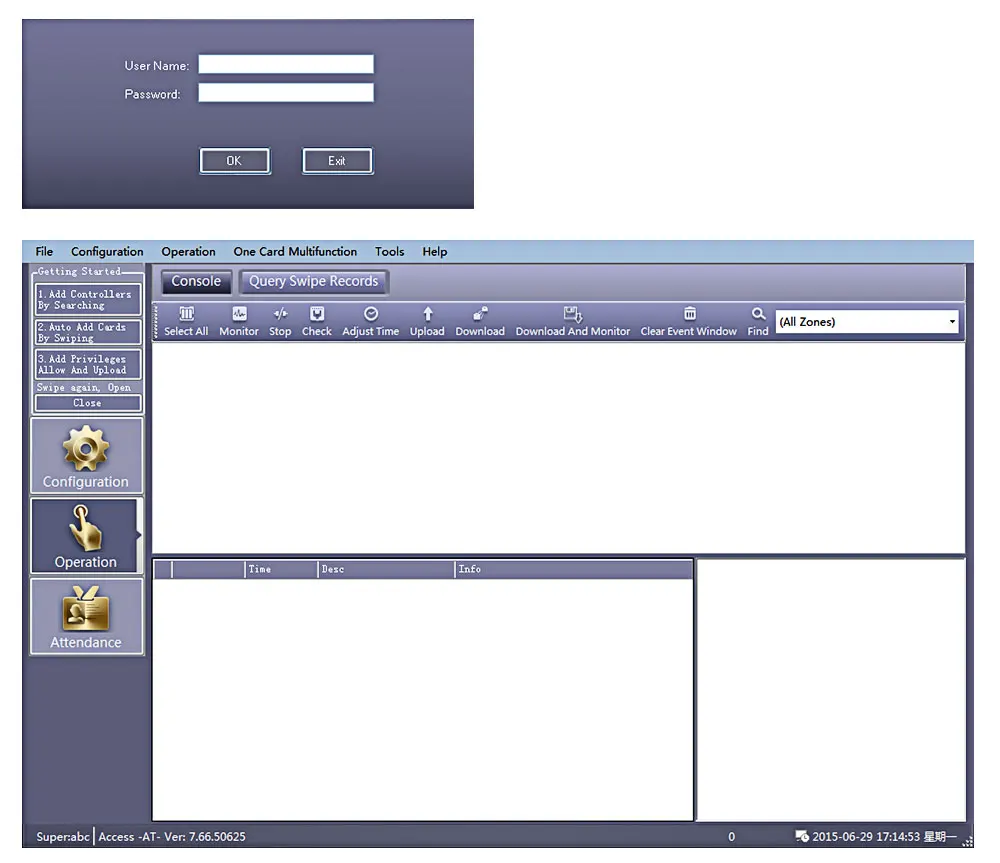

1.2 Free Software:

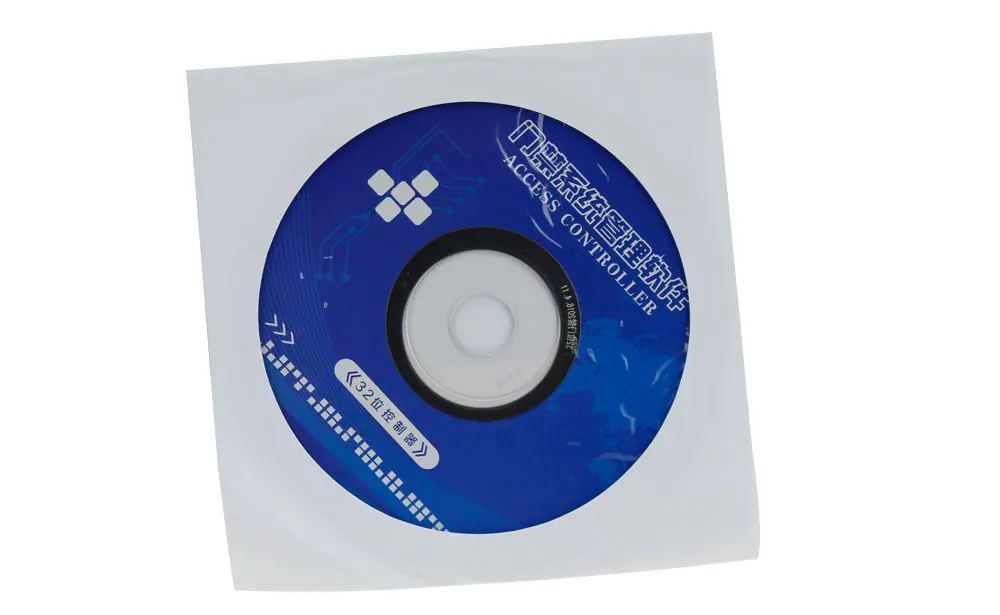

Will equipped with a CD disk. And the software and English user manual are included in the CD disk.

Operating system supported by software:
Windows XP SP3
Windows 7 / 10
Windows Server 2003 SP2
Windows Server 2008
Windows Server 2008 R2

1.3 LED Status Explain

•IN : Light is blink,valid card
•SYS : Ligh is bink.CPU runs normally
•ERR : Light is off.apparatus run normally,
•LINK: Green light flashes,the device already connect
•ACT: Orange light flashes,the device is processing data
•POWER : Light on ,have power to device
•DRI-DR2: Yellow light on ,door is open

1.4 Wiring standard

(Even the connection distance is very short. it must be implemented according to the following requirement)

+ 220V AC Power cable:
Thee-wire power supply, the cross-sectional area 1.0mm² or more.
It's required that power supply must be grounded to prevent From power interference.

+ The line of electric lock to controller:
It's recommended to use two-wire power line, the cross-sectional area 1.0mm² or more.
If the distance over 50 meters, it's considered to use thicker line or multiple parallel.

+ TCP/IP Communication Line:
Network cable

+ The card reader, door sensor and button line:
Can use network cable or others

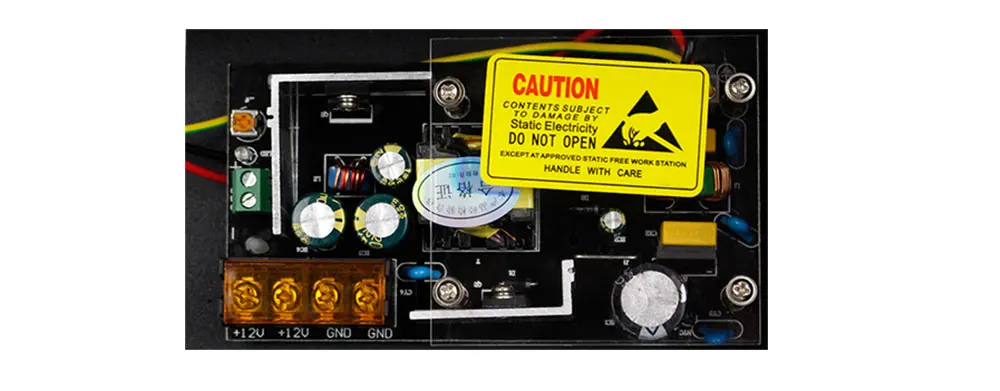

2. Access Control Power Supply Converter Box

Power: 50~60 W
Power: Input: AC90V / 260V
Output: DC 12V-14V, 5A
Automatic protection function, in the event of an unexpected situation such as a short circuit in the power supply,
The power supply will be temporarily disconnected or the fuse will be automatically secured.
Supports up to 2-4 card readers and 1 access control panel
Supports up to 4pcs electric mortise locks or 3pcs 280KG magnetic locks
Size: 235x277x72mm
Weight: 1.68kg

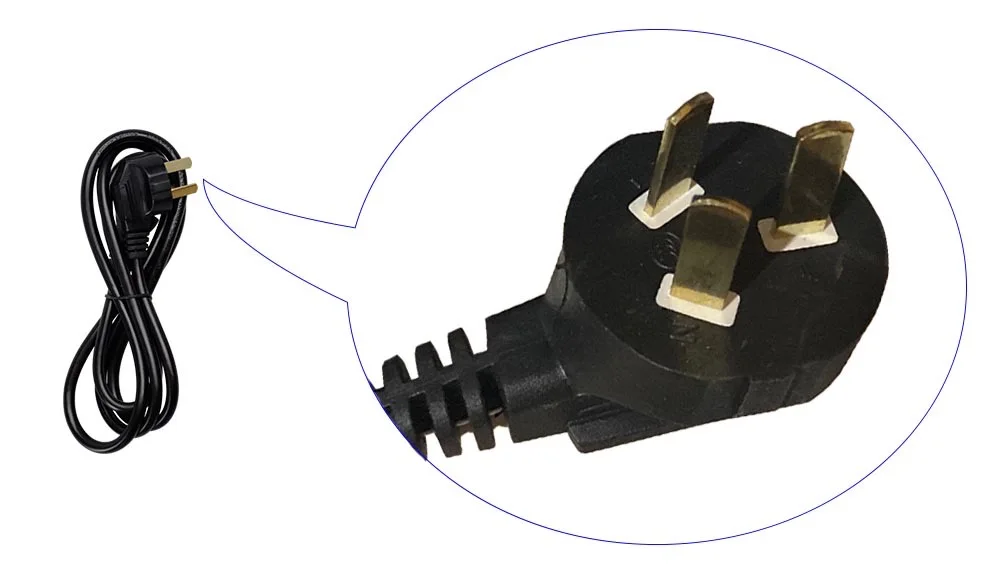

Please see below picture, we only have such a power plug for this device. If you need other type of power plug, you should buy it in extra.

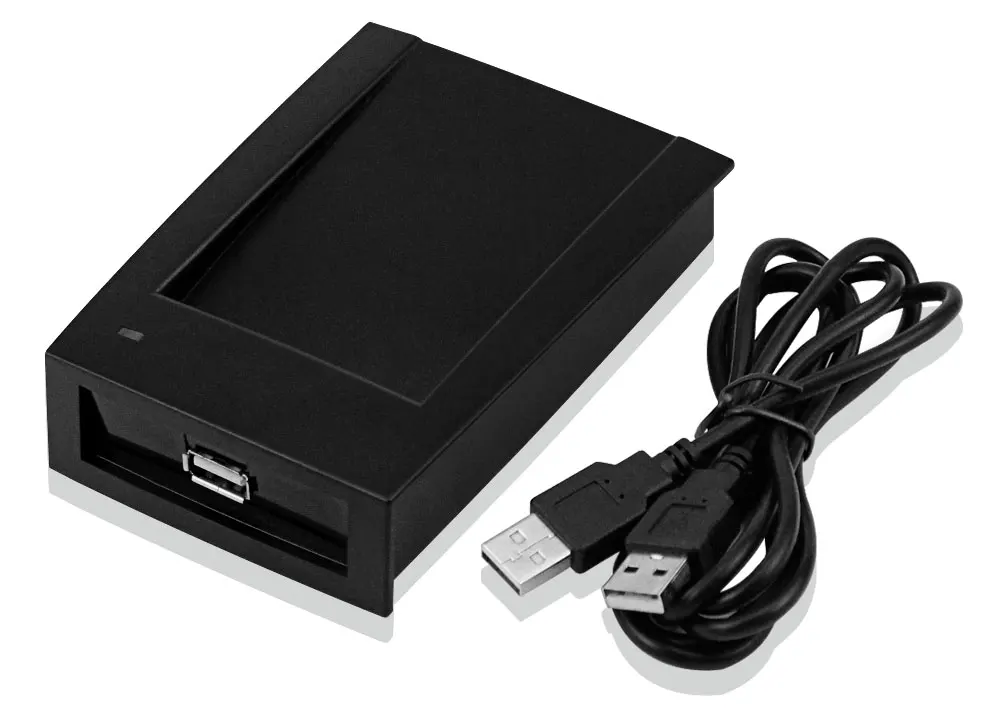

3. 125KHz USB Card Reader

Card Type: 125KHz EM card or EM compatible card
USB to PC: Windows 2000/xp/7/8
Output Format: First 10 digit or last 8 digit (selectable)

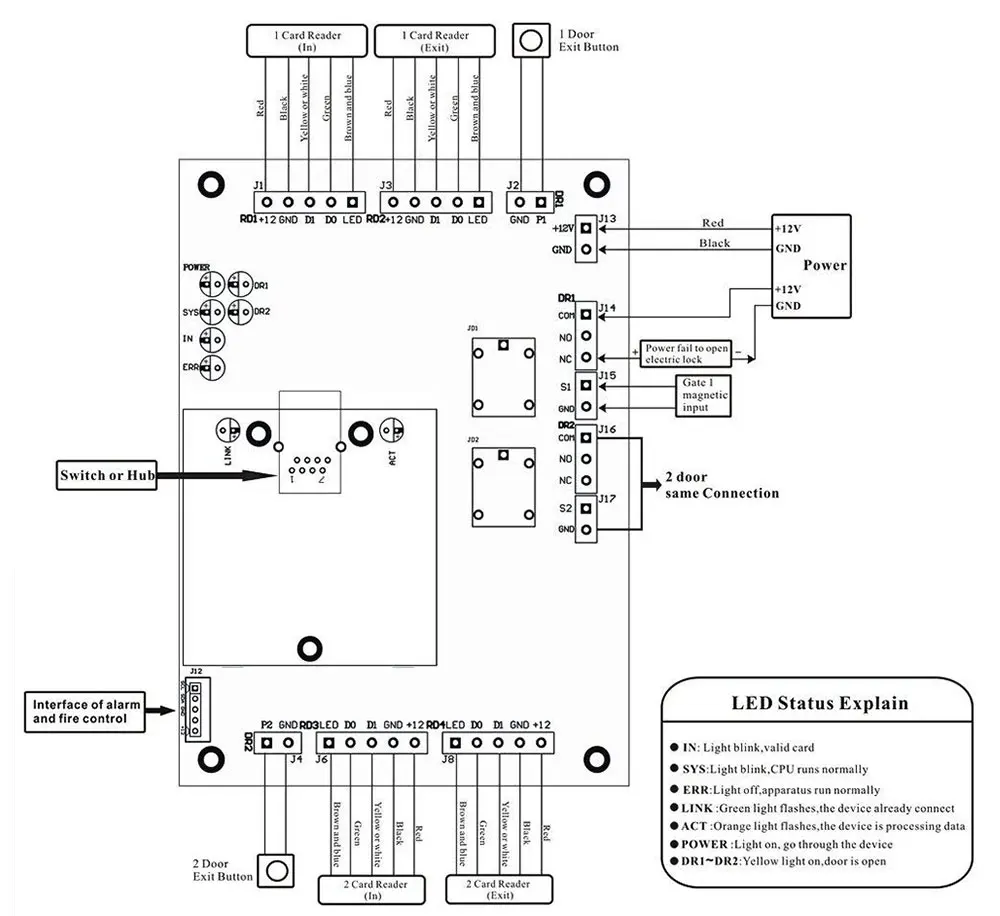

4. Wiring Diagram:

Example: double door access control board panel (TCP/IP communication)

5. Product Pictures:

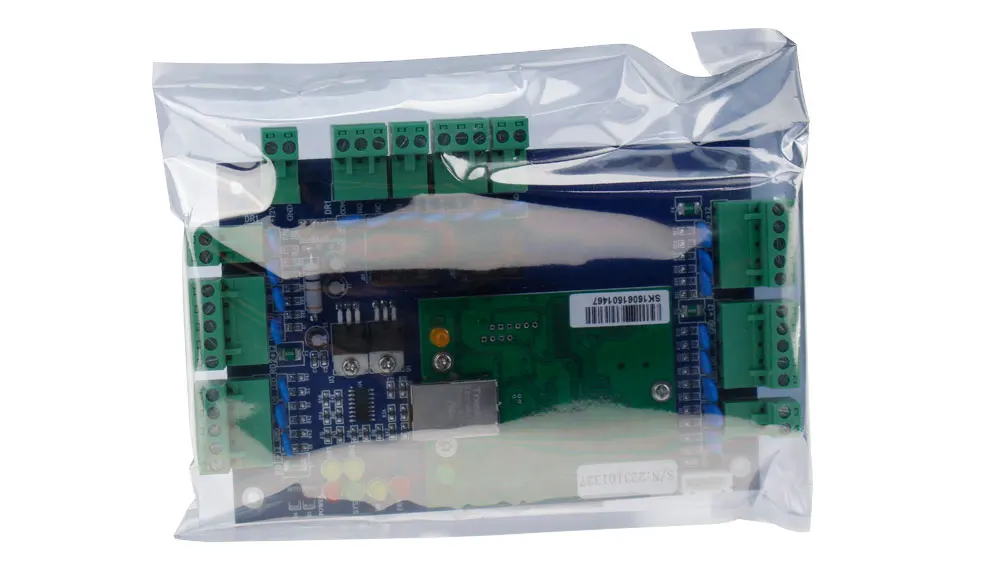

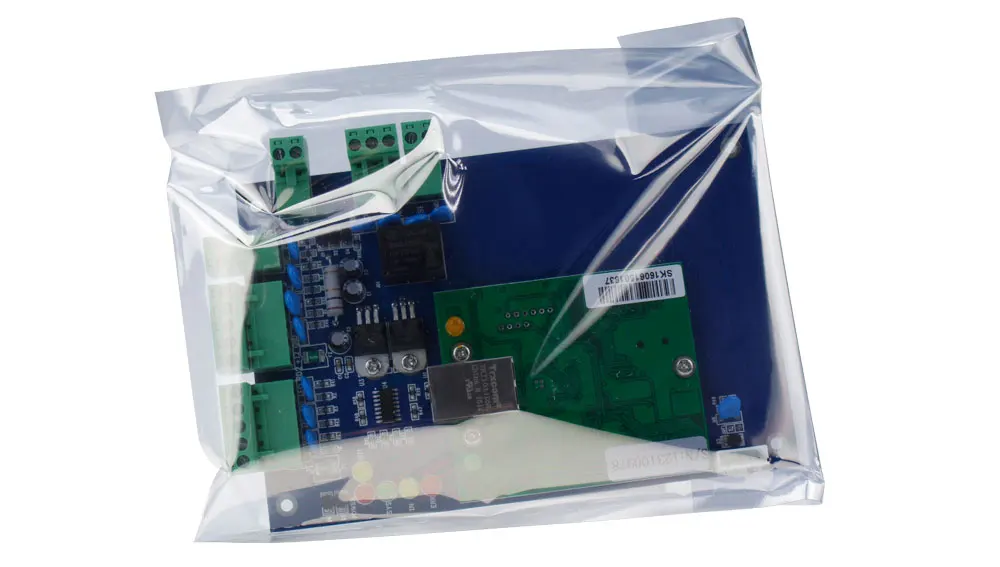

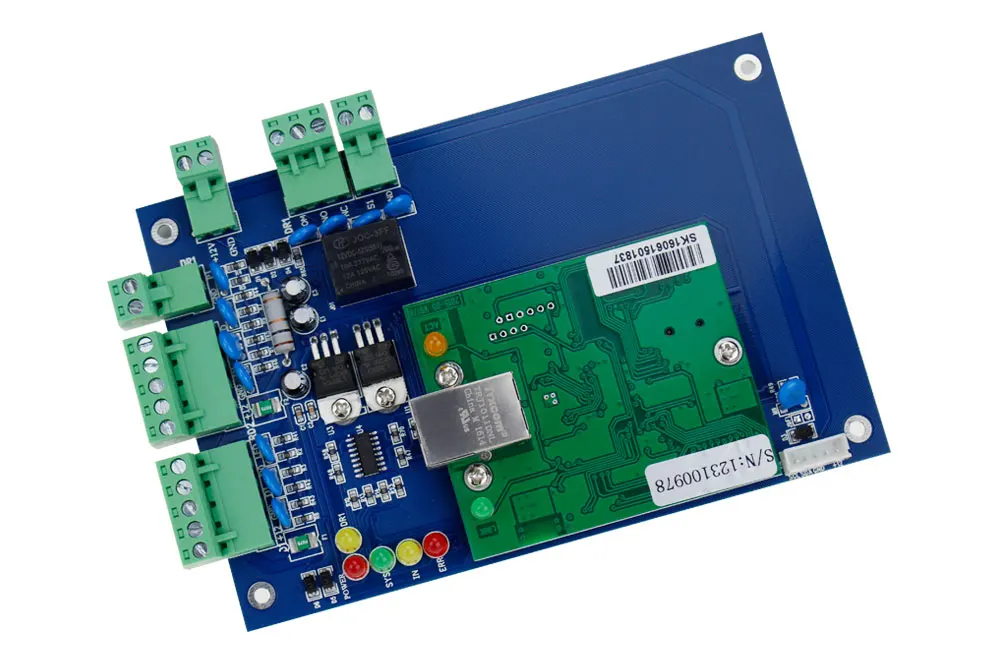

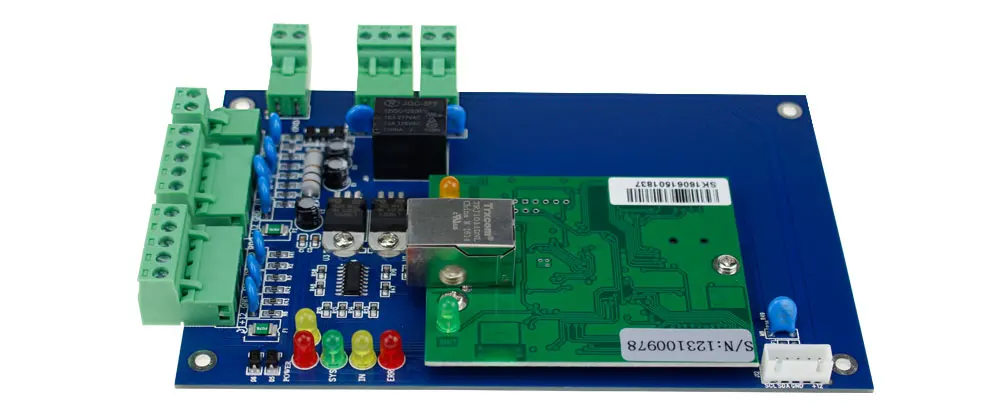

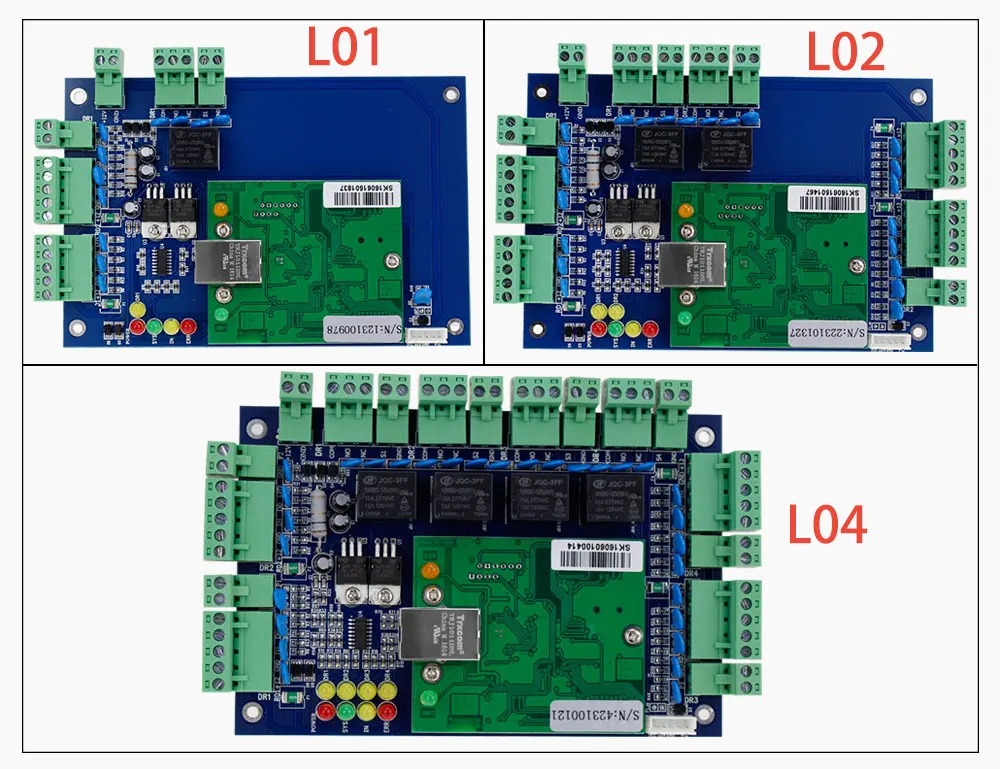

L01 Access Control Board Panel
(For single door)

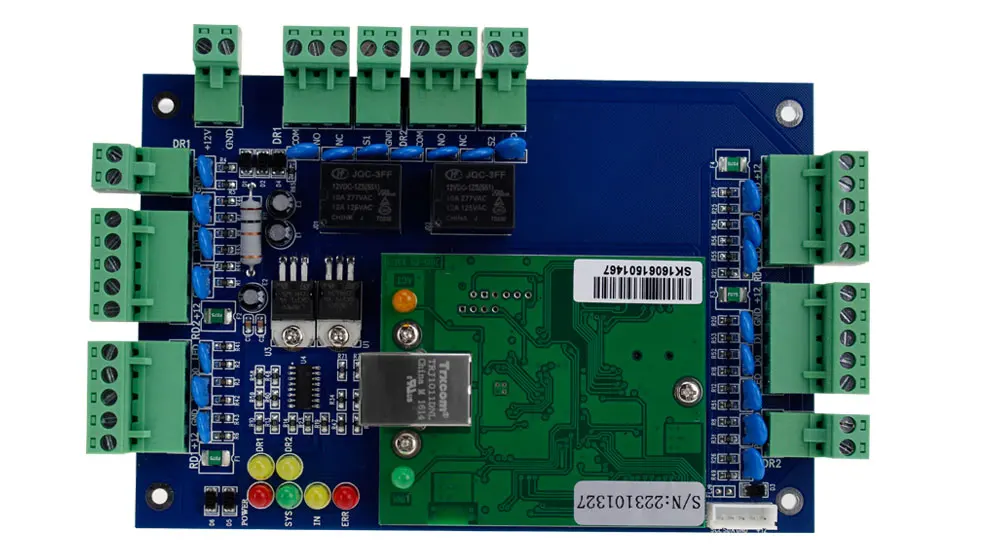

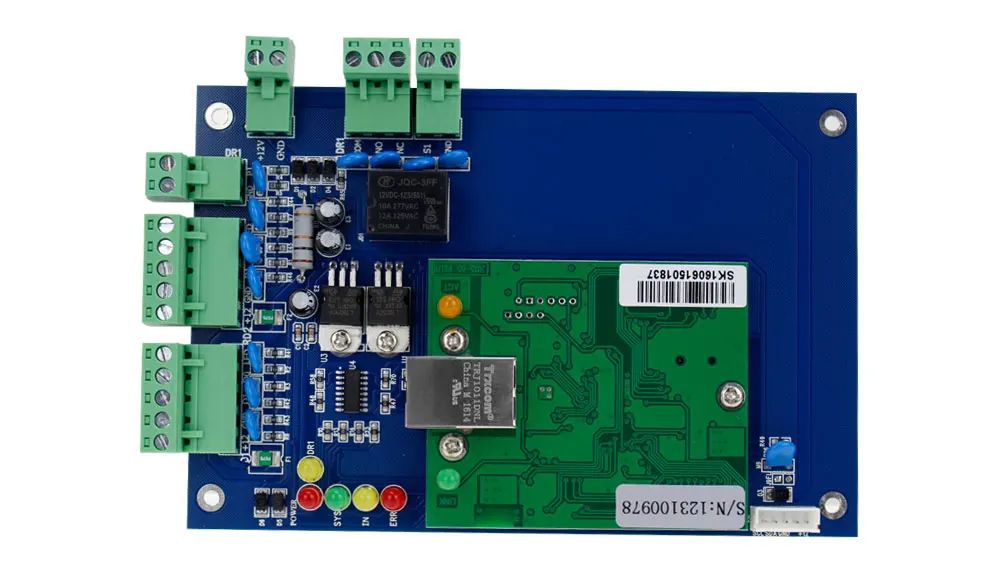

L02 Access Control Board Panel
(For double door)

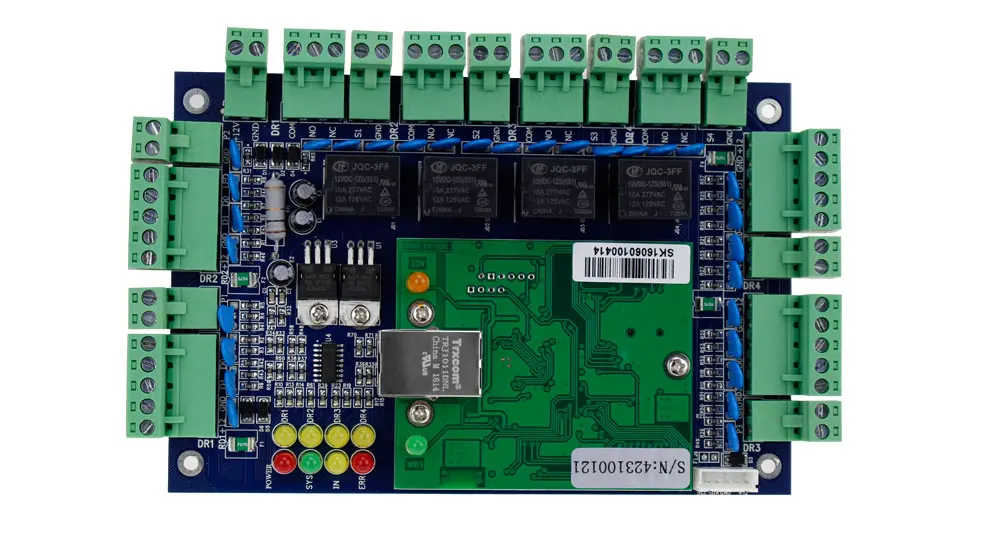

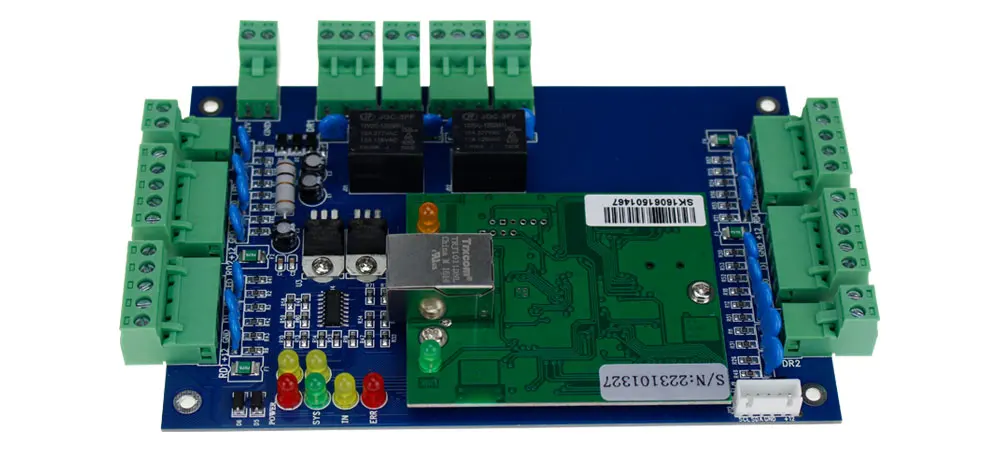

L04 Access Control Board Panel
(For four door)

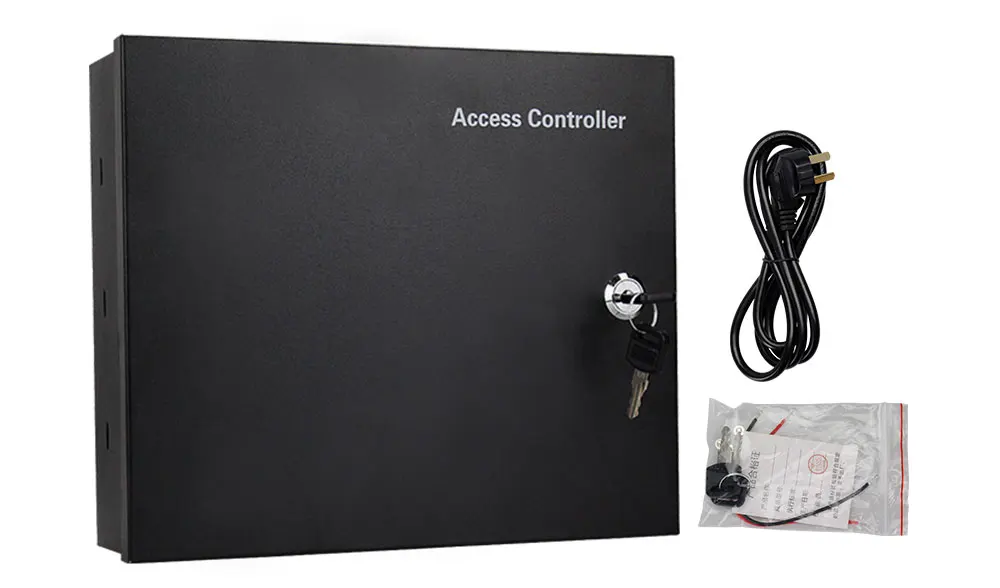

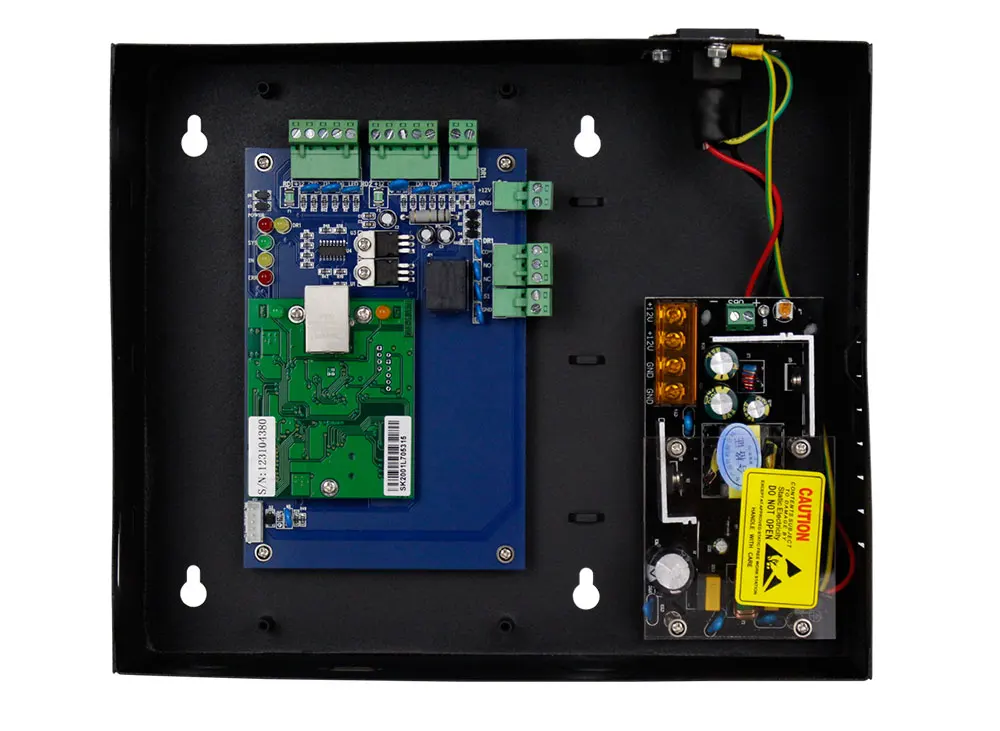

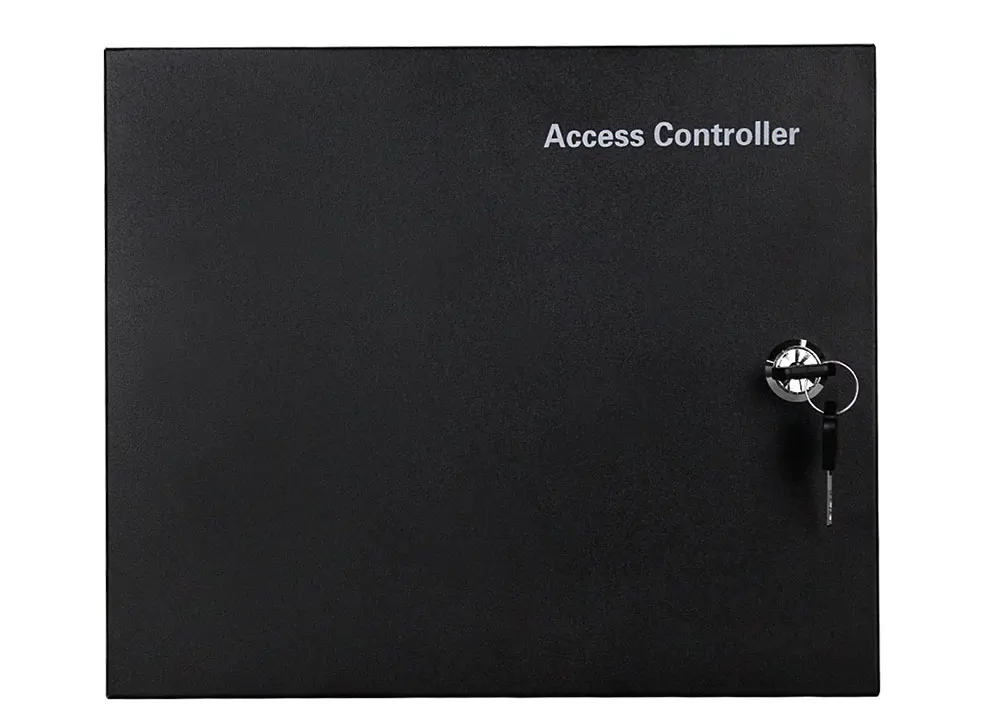

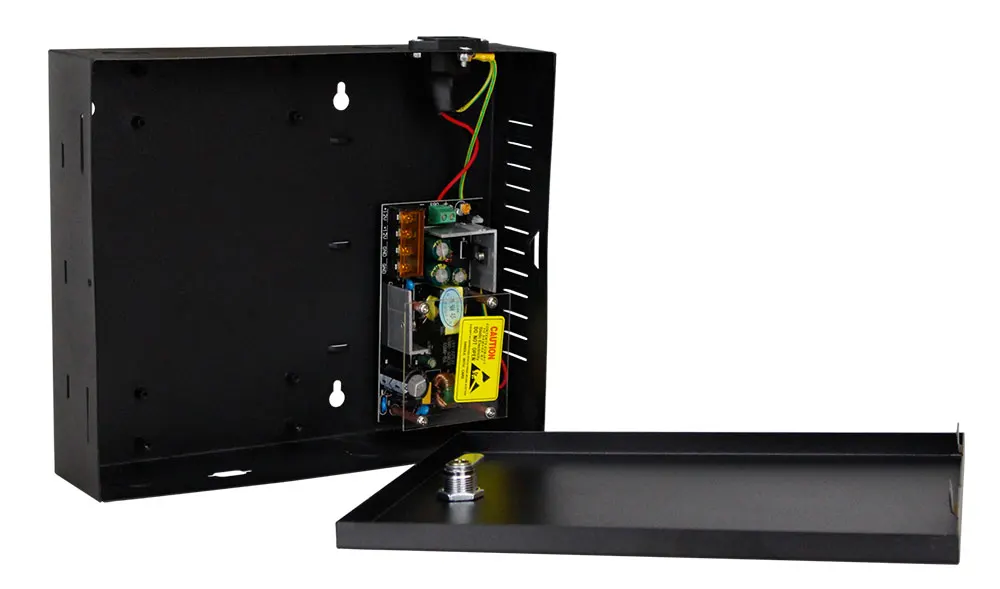

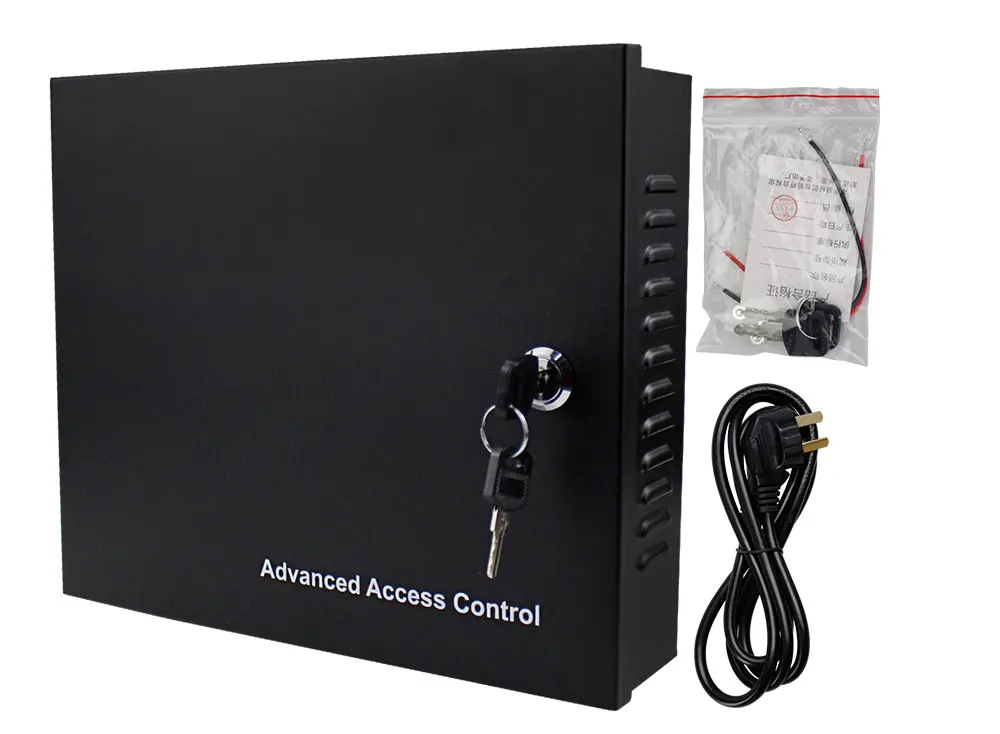

Access Control Power Supply Converter Box
